Aquarium Automation using NodeMCU ESP-12E V3.0 🐟

📢 Development Notice: This NodeMCU ESP-12E version will no longer receive feature updates. A new ESP32 version: Smart Aquarium V4.0 is under development that supports more powerful customization options and advanced monitoring features for aquarium inhabitants. Be the first ones to try it out and give feedbacks! 🚀

⚠️ Disclaimer

HIGH VOLTAGE electricity involved! Use at your own risk. Work under proper supervision if you are a minor. I take no responsibility for any accidents that may occur from using this code.

🎯 Features

• Modern responsive web interface
• Asynchronous webserver for better performance
• Real-time page updates using JavaScript XMLHttpRequest
• ESP-NOW time broadcasting to other ESP devices
• Multiple control modes:
  • Automatic (time-based)
  • Power Saver
  • Timer
  • Manual
• Intuitive status display on web interface
• Solid State Relay support for reliability
• Over-the-Air (OTA) updates
• Automatic time synchronization
• Visual feedback and WiFi signal indicators

📦 Prerequisites

ESP8266 Board Support

Add this URL in Arduino IDE:

http://arduino.esp8266.com/stable/package_esp8266com_index.json

File → Preferences → Additional Boards Manager URLs

Required Libraries

Install these libraries in Arduino IDE:

https://github.com/NorthernWidget/DS3231
https://github.com/dvarrel/ESPAsyncTCP
https://github.com/ESP32Async/ESPAsyncWebServer

Library Manager → Search and Install, or download ZIP and add manually

Note: Remove any conflicting libraries from your Arduino libraries folder before installation to avoid compilation errors.

Network Configuration

Important: Incorrect network configuration may result in connection issues. Consult your network administrator if unsure.

WiFi Credentials

Note: Ensure to update your WiFi credentials in the code before uploading to the NodeMCU.

🔧 Hardware Setup

I2C Devices (DS3231 & OLED 128x64)

NodeMCU	Device
D1	SCL
D2	SDA
3.3V	VCC
GND	GND

Note: Both I2C devices share the same pins. For I2C address conflicts, adjust pull-up resistor values.

4-Channel Relay Board

NodeMCU	Relay
D3	IN1
D5	IN2
D6	IN3
D7	IN4

Important: Do not fetch power from ESP GPIO Pins for relay board. Connect GND between NodeMCU, Relay and power supply.

📋 Schematics

For detailed wiring and connection diagrams, please refer to the project schematics.

_{Circuit Diagram}

🛠️ Required Components

Core Components

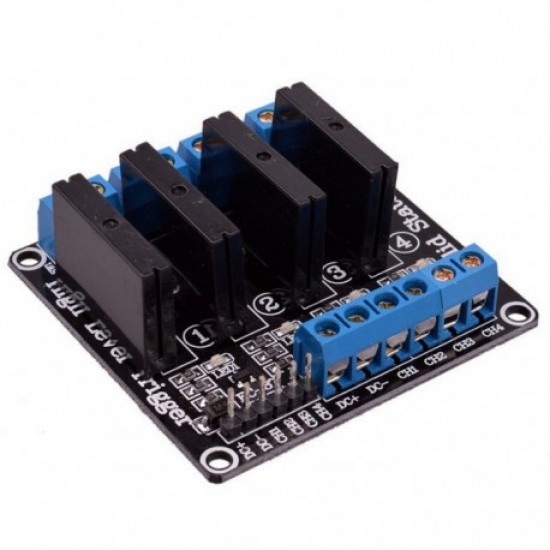

Relay Board 4 Channel 5V SSR 250V 2A with Resistive Fuse	RTC Module DS3231 I2C Precision RTC
Microcontroller NodeMCU-ESP8266 ESP12E Development Board	OLED Display 1.3" I2C I2C 128x64 Any Color

🌐 Web Interface

Responsive Web Dashboard
🎮 Control Features ⏱️ Time-based automation 🔌 Manual device control ⚡ Power saver mode ⏲️ Custom timer settings	📊 Dashboard Features 📡 Real-time status updates 📱 Mobile-responsive design 🔔 Visual status indicators 📈 Device runtime statistics

🤝 Contributing

We welcome contributions! Here's how you can help:

• 🔀 Fork the repository
• 👩‍💻 Create your feature branch
• ✨ Make your changes
• 📝 Open a Pull Request

🚀 Future Aspects

Here's what more can be done:

• 📱 Mobile App Integration
• 🌡️ Temperature Control
• 💧 Water Level Monitoring
• 🔄 Auto Water Change System

See our Issues page for detailed roadmap and planned features.

🔄 Future Updates

See Issues for planned features and improvements.
